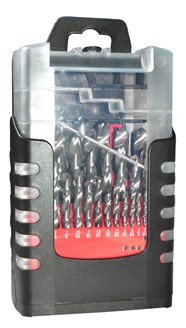

29-Pc Carb AlTiN Twist Drill Set 1/16 - 1/2 x 1/64

Part Number: 450-000029B

UPC: 888226263894

Monster Tool is sold through distributors all over the country.

Precision drilling in: non-ferrous alloys, cast iron, plastics, aluminum and highly abrasive materials.

Product Dimensions: 7.28" H x 2.48" W x 4.53" L

Master Legend

Applications:

Materials:

Speeds & Feeds:

For recommended speeds & feeds
for this product click here

Availability:

Usually ships SAME DAY
if ordered before 6pm Eastern

Shipping:

Via UPS from California -
Weight: 3.8lbs

Brand: Monster

Diameter: 1/16, 5/64, 3/32, 7/64, 1/8, 9/64, 5/32, 11/64, 3/16, 13/64, 7/32, 15/64, 1/4, 17/64, 9/32, 19/64, 5/16, 21/64, 11/32, 23/64, 3/8, 25/64, 13/32, 27/64, 7/16, 29/64, 15/32, 31/64 & 1/2"

Diameter
(Metric): 0.00mm

Set Piece Count: 29

Tool Length: Jobber

Helix: 25°

Flute Type: Spiral

Material: Solid Tungsten Carbide

Material Grade: C-2 Sub-Micron

Spiral Type: Twist

Cut Direction: Right Hand

Spiral Direction: Right Hand

Coolant Through: External Coolant

Web Thinning: Thinned

Diameter Tolerance: +0.0000 / -0.0005

NOTE: Contains: 450-100625B, 450-100781B, 450-100938B, 450-101094B, 450-101250B, 450-101406B, 450-101562B, 450-101719B, 450-101875B, 450-102031B, 450-102188B, 450-102344B, 450-102500B, 450-102656B, 450-102812B, 450-102969B, 450-103125B, 450-103281B, 450-103438B
